Description
1.5 HP Tire Changer & Wheel Balancer Machine Combo – Model 806B & 70D
The 1.5 HP Tire Changer & Wheel Balancer Machine Combo 806B & 70D is an economical and practical solution for automotive shops and home garages looking for efficient tire changing and precise wheel balancing. Designed to handle a wide range of rim sizes and tire types, this combo set delivers reliable performance, durability, and user-friendly operation.

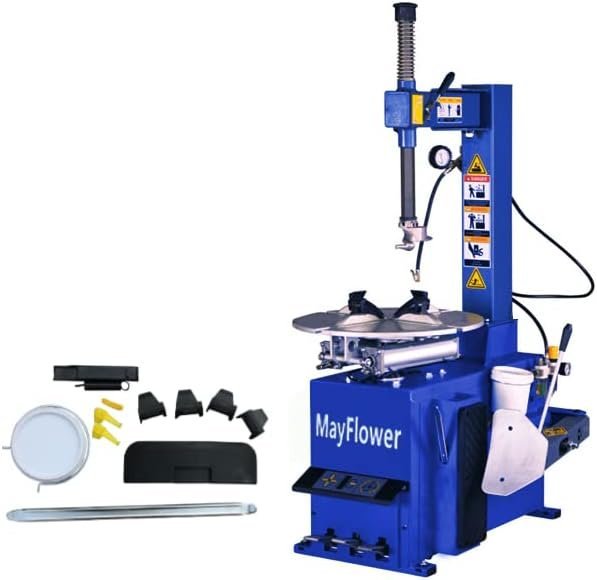

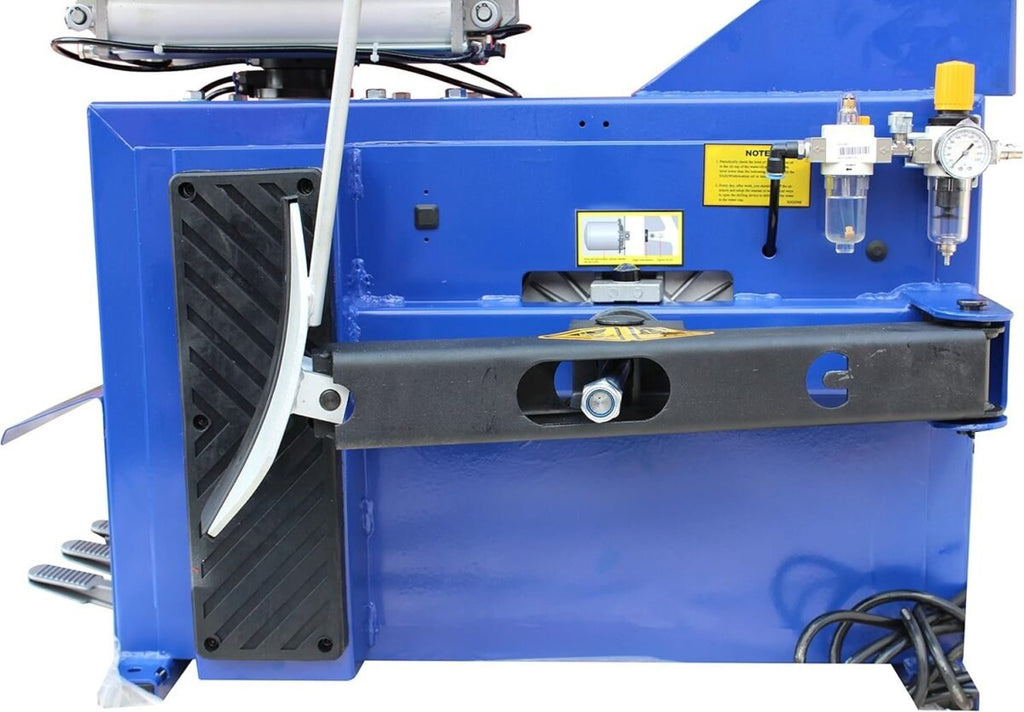

806B Tire Changer Features
- Economical & Practical Design – Perfect for small to medium-sized shops and home garages.
- High-Density Aluminum Piston (Spade Cylinder) – Increases durability and extends service life.
- Precision Steel Cast Clamping Jaws – Provides firm grip and long-lasting durability.
- Optional Motorcycle Adapter Available – Expands compatibility for motorcycle tires.
- Enhanced Inner Box Structure – Prevents mechanical deformation and increases lifespan.
- Protective Clamping Jaw Sleeve – Protects tires and rims from damage.
- Air Bead Blaster Function – Ensures fast and efficient bead seating.
- Power Supply: 110V.
Tire Changer Specifications:
|
Specification |
Measurement / Detail |
|---|---|
|
Rim Clamping (Inside) |
14″ – 26″ |
|
Rim Clamping (Outside) |
12″ – 28″ |
|
Maximum Wheel Diameter |
46″ |
|
Maximum Tire Width |
3″ – 14″ |
|
Bead-Breaker Force |
2500 kgf |
|
Operating Pressure |
8-10 bar |
|
Weight |
536 lbs |

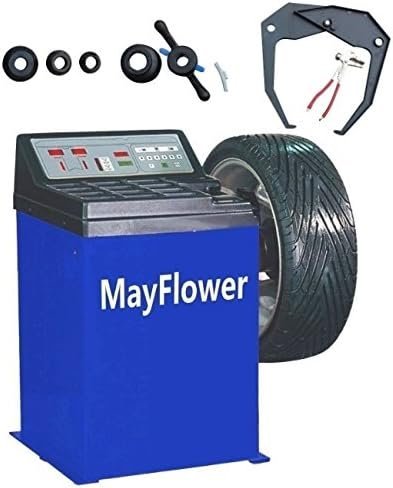

70D Wheel Balancer Features
- Automatic Static & Dynamic Balancing Programs – Ensures precise balancing for all wheel types.
- ALU Program – Supports aluminum wheels and custom balancing needs.
- External & Internal Data Set Arm – Provides simple operation with accurate measurements.
- Multiple Balancing Programs – Compatible with various wheel structures.
- HTD Program – Allows weight to be hidden behind spokes for aesthetics.
- OPT Program – Optimizes wheel and rim balancing for smoother performance.
- Foot Brake Positioning – Holds the wheel at the unbalanced point for precision adjustments.
- Fault Diagnosis System – Detects component issues for easy troubleshooting.
- Power Supply: 110V.
Wheel Balancer Specifications:
|
Specification |
Measurement / Detail |
|---|---|
|
Rim Diameter |
10″ – 24″ |
|
Maximum Tire Diameter |
39″ |
|
Tire Width |
1.5″ – 16″ |
|
Maximum Tire Weight |
154 lbs |
|
Packing Size |
980 x 700 x 1050 mm |
|
Rotation Speed |
200 r/min |
|
Balancing Precision |
±1g |
|
Motor Voltage |
110V |
|
Gross Weight |
269 lbs |
Why Choose the 806B Tire Changer & 70D Wheel Balancer Combo?
The 806B Tire Changer & 70D Wheel Balancer is an excellent choice for shops and garages that need an affordable, high-performing tire service solution. Its strong build, versatile features, and precise balancing technology make it ideal for a wide range of vehicle types.
For reliable, efficient, and user-friendly tire servicing, the 1.5 HP Tire Changer & Wheel Balancer Machine Combo 806B & 70D is the perfect choice!
